Trolley Lifts – Floor-Loading Lifts for Wheeled Trolleys

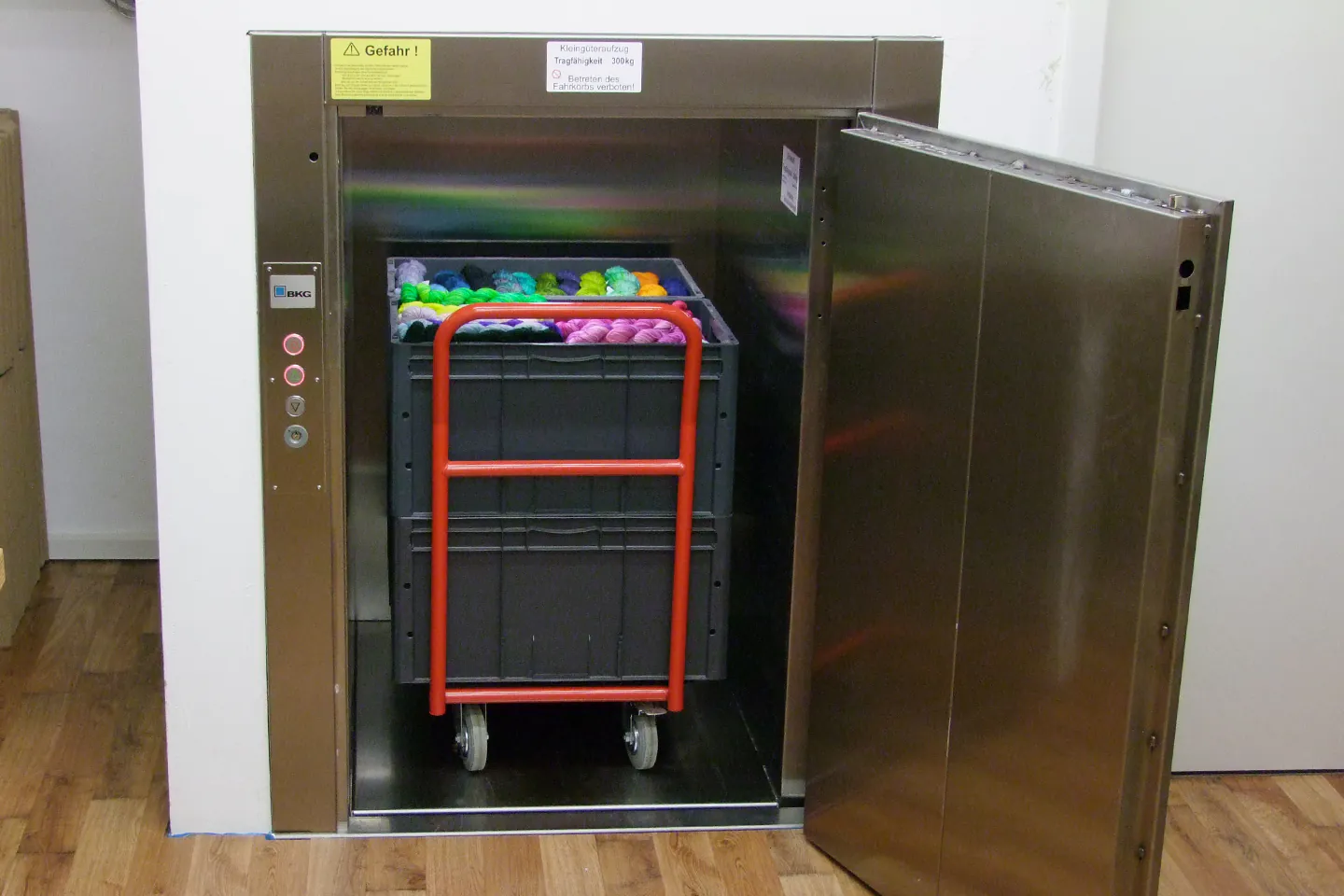

Built for wheeled trolleys, roll cages, and linen carts, our trolley lifts make loading and unloading effortless. With smooth roll-in access and a range of capacities, they’re the perfect fit for bars, pubs, restaurants, hotels, commercial kitchens, hospitals, and warehouses.
Key Features of Our Trolley Lifts
Space-Saving, Floor-Level Access
Designed to fit into compact spaces, our trolley lifts are ideal for tight layouts and busy environments. With floor-level loading options, staff can transfer goods quickly and safely without heavy lifting.
Quiet, Low-Energy
Operation
Engineered for smooth, whisper-quiet movement, our systems run without disrupting your workspace. Energy-efficient motors help lower running costs without compromising performance.
Robust Build for Demanding Environments
Built with durable materials and commercial-grade components, these lifts handle high-traffic, heavy-use settings with ease. Perfect for kitchens, bars, warehouses, shops, and more.
Easy to Maintain,
Easy to Operate
User-friendly controls and accessible parts make operation simple for all staff. Maintenance is quick and hassle-free, keeping downtime to a minimum.
Technical Information & Downloads
Request Your Trolley Lift Brochure
Request CAD Drawings & Technical Datasheets
We Make the Impossible, Possible
From tight shafts to heritage buildings, we specialise in trolley lift installation for spaces others walk away from.
If you’ve been told it can’t be done — talk to us.
Trolley Lift Models & Capacities
At Husbands, we understand that different businesses have different lifting needs. Our trolley lifts come in 100kg, 250kg and 300kg capacities, ensuring you can choose the perfect model for your specific requirements.
| BKG Model: | 100.30/9 | 100.30/12 | 300.30/11 | 300.30/13 | 300.30/42 |
|---|---|---|---|---|---|
| Rated Load (kg) | 100 | 100 | 100 | 250 | 250 |
| Speed (m/s) | 0.30 | 0.30 | 0.30 | 0.30 | 0.30 |
| Landing Door Type | Single Hinged | Single Hinged | Single Hinged | Single Hinged | Concertina Gate |
| Car Width (CW) (mm) * Min | 400 | 600 | 400 | 600 | 400 |
| Max | 1000 | 1000 | 1000 | 1000 | 1000 |
| Car Depth (CD) (mm) * Min | 600 | 700 | 800 | 800 | 900 |
| Max | 1000 | 1000 | 1000 | 1000 | 1000 |
| Car Height (CH) (mm) *Min | 800 | 800 | 800 | 800 | 800 |
| Max | 1200 | 1200 | 1200 | 1200 | 1200 |
| Loading | Single or Through | Adjacent | Single or Through | Adjacent | Single or Through |
| Shaft Width (mm) Car Width + | 400 | 260 | 400 | 260 | 570 |
| Shaft Depth (mm) Car Depth + | 120 | 260 | 120 | 260 | 140 |
| Headroom (mm) Car Height + | 2500 | 2500 | 2500 | 2500 | 2500 |
| Pit (mm) | 260 | 260 | 260 | 260 | 260 |
Why Choose Husbands
With years of experience in providing innovative lifting solutions, Husbands Lifts is your trusted partner for all things related to dumbwaiters, lifts, and transportation systems.
Our trolley lifts are designed with the highest quality standards in mind, ensuring safety, efficiency, and long-term reliability for your business.
Contact Our Lift Experts Today
Get in touch today for expert advice tailored to your needs.
Whether you’re interested in a 100kg, 250kg or 300kg capacity model, we’ll help you find the right fit for your business and space.
FAQs – Everything You Need to Know About Trolley Lifts
A trolley lift is a type of goods-only lift designed for safely transporting wheeled items, such as food trolleys, linen carts, or roll cages, between floors.
They’re widely used in commercial settings where quick, hands-free loading and unloading are essential.
The cost of a trolley lift can vary depending on several factors, including the size, weight capacity, number of floors it needs to serve, and the complexity of the installation.
Because every building and use case is different, we provide pricing on a case-by-case basis following a quick assessment of your requirements. Get in touch and we’ll walk you through what to expect.
We offer a range of trolley lift models with different capacities to suit various needs. The most common options include 100kg and 250kg capacity lifts, ideal for safely moving trolleys, roll cages, and carts between floors.
If you’re unsure which size is right for your space, our team is happy to advise.
Trolley lifts can be installed in most buildings, but there are a few things to check first:
Is there enough space for the shaft?
Can the structure support the lift system?
Do local building regulations allow it?
If you’re unsure, we’re happy to carry out a site assessment to check what’s possible.
Installation timeframes for our trolley lifts typically range from:
- Simple installations (pre-existing shaft): 2-3 days
- Standard installations (2-3 floors): 4-7 business days
- Complex installations (shaft construction needed): 2-3 weeks
These timelines include initial assessment, preparation, installation, testing, and certification. Our project managers will provide you with a detailed timeline specific to your installation.
Trolley lifts are used across a wide range of industries, including:
Restaurants, pubs, and bars
Hotels and commercial kitchens
Hospitals and care facilities
Warehouses and stockrooms
Anywhere that needs to move wheeled loads quickly and safely between levels.
